Overview
- Condition: New vehicle
- Manufacturer: Polaris
- Model: Ranger Crew XD 1500 Northstar Ultimate // Super Graphite Smoke
- Year: 2026
- Stock #: R26XAW1RBJ-INCOMING
- Type: Sides-by-sides
- Kilometers: 1 km
- Exterior colour: Gray
Specifications
- Cooling: Liquid
- Cylinders Displacement: 1498cc
- Drive System Type: On-Demand True AWD/2WD/Turf/Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery
- Engine Braking System (EBS): Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills.
- Engine Type: 4-Stroke DOHC Triple Cylinder
- Fuel System/Battery: Electronic Fuel Injection
- Horsepower: 110 HP
- Torque: 105 LB-FT
- Transmission/Final Drive: Automatic PVT H/L/N/R/P; Shaft
- Bed Box Dimensions (L x W x H): 43.4 x 56 x 13.4 in (110.2 x 142.2 x 34 cm) Equipped with Power Box Lift
- Box Capacity: 1,500 lbs. (680 kg)
- Estimated Dry Weight: 3,323 lb. (1,507 kg)
- Fuel Capacity: 13.6 gal (51.5 L)
- Ground Clearance: 15 in. (38 cm)
- GVW: 5,035 lbs. (2,284 kg)
- Hitch Towing Rating: 3,500 lbs. (1588 kg)
- Hitch Type: Standard 2 in (5 cm) Receiver
- Overall Vehicle Size (L x W x H): 164 x 65 x 78 in (416.5 x 165 x 198 cm)
- Payload Capacity: 1,665 lbs. (755 kg)
- Person Capacity: 6
- Water Fording Height: Equal to the Floorboards
- Wheelbase: 127 in. (322.6 cm)
- Front/Rear Brakes: Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers
- Parking Brake: Park In-Transmission
- Adjustable Driver Seat: Standard
- Cargo System: Lock & Ride MAX
- Color / Graphics: Ghost White
- Electronic Power Steering: High Output EPS
- Gauge: C4
- Instrumentation: 7” Display Powered by RIDE COMMAND: Plow Mode, Group Ride, GPS Navigation, Bluetooth, AM/FM Radio; Factory Rear Camera; Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting
- Lighting: LED Headlights w/ LED Taillights, LED Rear Work Light, LED Dome Light, Door Puddle Lighting, Front LED Aux Light, Interior Accent Lighting, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting
- Other Standard Features: Premium Pro-Shield Cab, Doors with Full Power Windows, Tipout Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Door Puddle Lighting, Interior Accent Lighting, Rearview Mirror, Heat, AC, Defrost. Premium Heated Front Contoured Seats with Additional Bolstering, Premium Headrests and Center Armrest. Premium, Telescoping Steering Wheel and Painted Interior Accents. Polaris Pulse Electrical System (6 position), 140 Amp Charging System. Front Bumper with D-Rings, Top Bar and Integrated LED Auxillary Lights. Overhead Switch Panel, DC Outlet, USB Charge Port, Trickle Charger, 12V Cargo Box Power Port, NorthStar Badge. Polaris Pro HD 6,000 lb. Synthetic Rope Winch with Autostop and Rapid Rope Recovery plus Wireless Remote
- Tilt Steering: Tilt & Telescoping Steering
- Front Tires: 30 x 10-15; KENDA® CROSS TRAIL
- Rear Tires: 30 x 11-15; KENDA® CROSS TRAIL
- Tire Ply Rating: 8 Ply Rated
- Wheels: 15" Aluminum
- Front Suspension: Dual A-Arm 12" (30.5 cm) Travel
- Rear Suspension: Dual Arched A-Arm IRS 12" (30.5 cm) Travel
- Turning Radius: 19.4 ft. (6 m)
Notes
Notes:
POLARIS 'GIFT THE OUTDOORS' HOLIDAY SALES EVENT: Until November 30, 2025, take advantage of rebates up to $2,000, 2 year warranty (12 months factory + 12 months promotional) and 5.99% financing for up to 84 months OR interest rates as low as 3.99% APR OAC for 36 months in lieu of rebates and warranty offer on select MY25 Polaris Ranger models.
RANGER WARRANTY: Select Polaris Ranger models come with a promotional 2 year promotional warranty (1 year factory plus 1 year promotional). See dealer for full details.
MY26 RANGER: Promo finance rates of 5.99% for up to 84 months and promotional 2 year warranty on the newly unveiled 2026 Polaris Ranger lineup. Excludes 500 & Kinetic models.
AG ADVANTAGE: $1,000 rebate, $250 accessory credit and 2 year limited warranty on Ranger Northstar models for farmers and ranchers. Can be combined with rebates and promotional financing offers. Proof must be supplied. See dealer for full details.
We have Polaris product arriving daily! See in-store for the most up to date selection, like the XPEDITION, Ranger XD 1500 and RZR XP 1000!
Price includes freight and PDI. Only applicable taxes are extra. See dealer for the most up-to-date information.

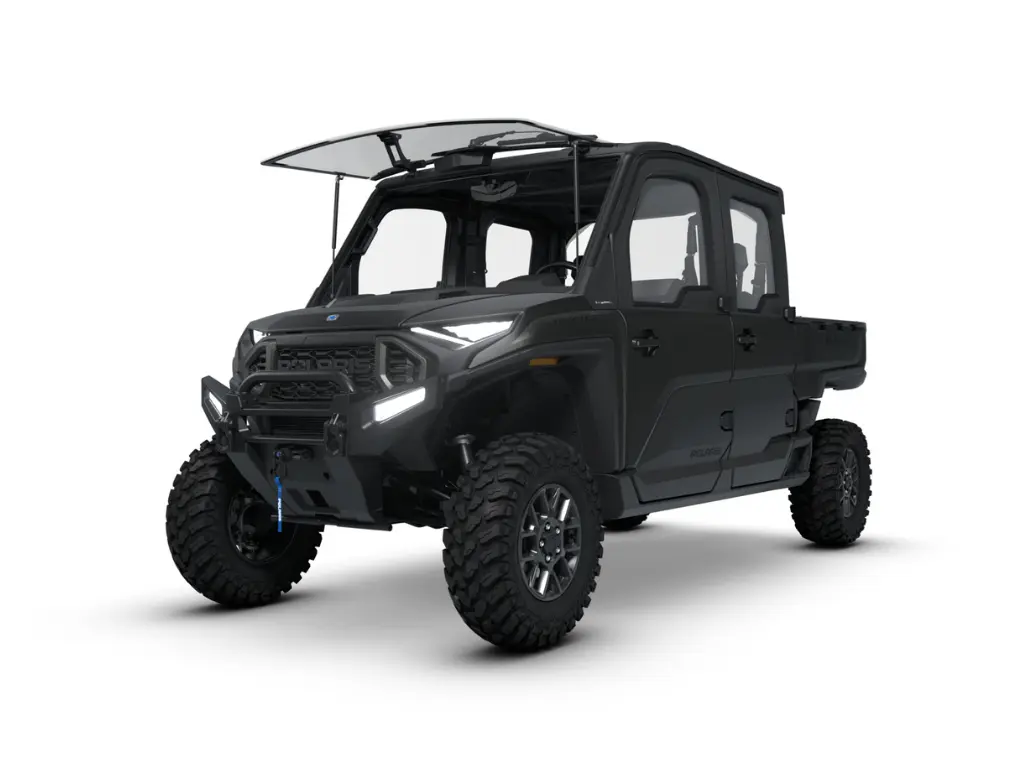

2026 Polaris Ranger Crew XD 1500 Northstar Ultimate
A class of its own. Part of our Extreme Duty class. The strongest, most capable and comfortable RANGER with all-season comfort and elevated in-cab features.
XD 1500 NORTHSTAR STANDARD FEATURES:
- 110-hp ProStar 1500cc engine & STEELDRIVE transmission
- 3,500-lb. towing capacity & 1,500-lb. box capacity
- Factory-installed heating & air conditioning (HVAC) system
- Electronic cargo box lift
- Pro Series 6,000-lb. winch with synthetic rope, Auto Stop, rapid rope recovery and wireless remote
- 30" Kenda Cross Trail tires and 15" wheels
- 3.07 rear drive gear ratio
- Lock & Ride MAX Accessory Integration
ULTIMATE TRIM INCLUDES:
- Enclosed cab with power windows and tip-out windshield
- Heated front seats
- JBL Trail Pro 2000 Audio
- 7" Display, powered by RIDE COMMAND, with factory rear camera
- RIDE COMMAND+ Connected Vehicle Services
- LED cargo box light and overhead switch panel
- 12V cargo box power port
- Bumper D-rings and TopBar
